ID vs. OD Grinding: What’s the Difference and When to Use Each

Precision grinding plays a vital role in modern manufacturing, ensuring parts meet exact specifications with exceptional accuracy and finish.

Among the most common methods are Internal Diameter (ID) grinding and Outside Diameter (OD) grinding.

While both techniques are designed to achieve tight tolerances, they differ in application, capability, and the type of surfaces they refine.

At Nexus Manufacturing, we specialize in ID and OD grinding services, supporting industries such as aerospace, automotive, medical, and defense.

Understanding the difference between ID vs. OD grinding and knowing when to use each, helps engineers, purchasing managers, and production teams make informed choices that improve efficiency, reduce costs, and ensure consistent quality in every component.

What Is ID Grinding?

ID grinding, or internal diameter grinding, is a precision machining process used to finish the internal surfaces of cylindrical or conical parts. A rotating grinding wheel removes small amounts of material from the inside diameter of a bore, sleeve, or tube to achieve the desired size, roundness, and finish.

Key Features of ID Grinding:

• Targets internal surfaces such as bores, holes, and cylinders.
• Achieves tight tolerances, often within ±0.0001 inch.
• Produces extremely smooth finishes (up to 8 microinches Ra or better).
• Can correct imperfections like taper, out-of-roundness, and chatter.

ID grinding is especially useful when high accuracy is needed for mating parts, such as shafts fitting into bearings or bushings.

What Is OD Grinding?

OD grinding, or outside diameter grinding, is used to machine the external surface of cylindrical parts. In this process, the grinding wheel removes material from the outside of a shaft, tube, or sleeve to achieve precise diameters and finishes.

Key Features of OD Grinding:

• Targets external surfaces of parts.
• Suitable for long, slender, or short components.
• Provides high concentricity and uniformity across the part length.
• ID Capable of achieving fine surface finishes and exact diameters.

OD grinding is critical for ensuring that components fit properly with internal parts, such as a shaft fitting smoothly into a bore.

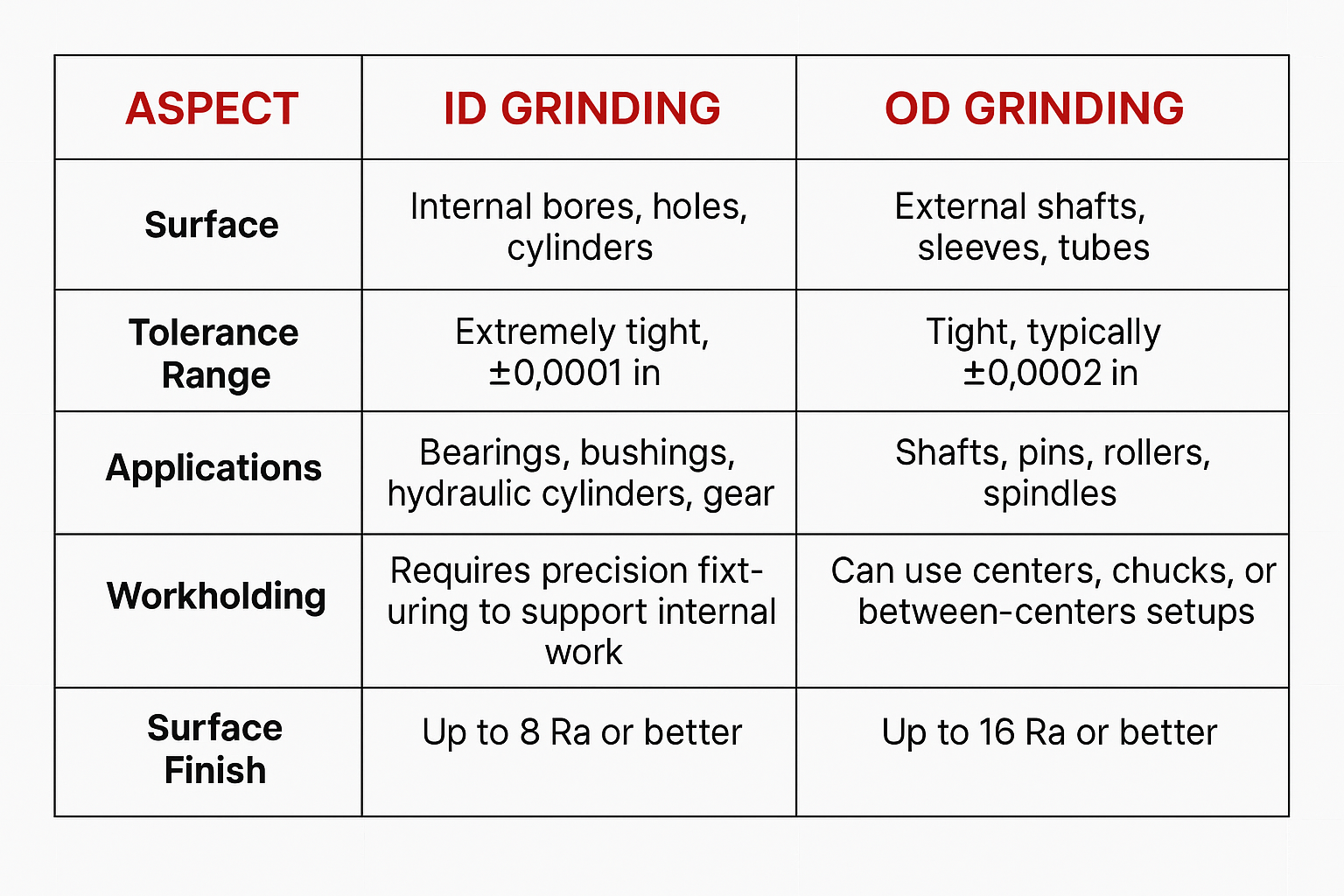

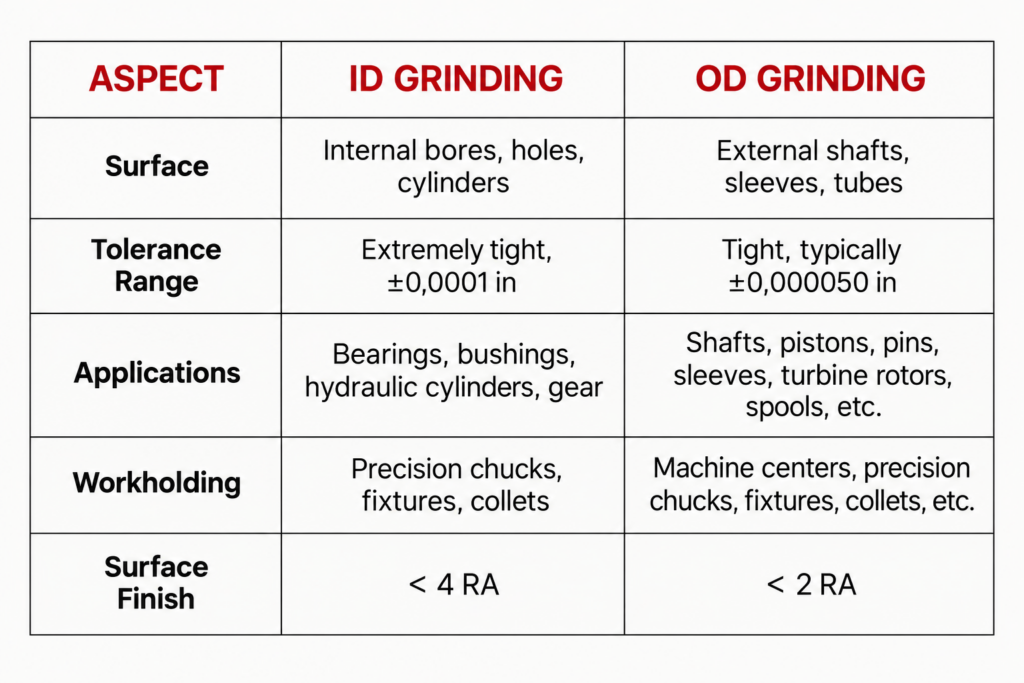

ID vs. OD Grinding: The Key Differences

Although both processes rely on grinding wheels to achieve accuracy, the differences between ID and OD grinding lie in their applications, tooling, and setup.

When to Choose ID Grinding

ID grinding is ideal when internal precision is critical. Industries that rely heavily on this service include:

1. Aerospace – turbine engine components, bushings, and hydraulic sleeves.
2. Medical Devices – surgical tools, orthopedic implants, and precision tubing.
3. Automotive – gear bores, transmission components, and bearing races.
4. Hydraulics – pumps, cylinders, and fluid handling components.

If your component requires exact bore sizes, concentricity, or smooth internal finishes to reduce friction and wear, ID grinding is the right solution.

When to Choose OD Grinding

OD grinding is typically selected when the external precision of a component is most important. Applications include:

1. Industrial Equipment – drive shafts, rollers, and spindles.
2. Defense and Military – high-tolerance shafts and weapon system components.
3. Medical – surgical instrument handles and implantable rods.
4. Automotive – camshafts, crankshafts, and axles.

OD grinding ensures parts maintain uniform diameters, run true to the axis, and provide reliable fits with internal components.

ID and OD Grinding Working Together

In many projects, both ID and OD grinding are required. For example, a bearing assembly may require OD grinding of the outer race and ID grinding of the inner race to ensure both parts fit perfectly together. Similarly, hydraulic cylinders often demand OD grinding of the shaft and ID grinding of the sleeve to achieve a smooth, leak-free system.

At Nexus Manufacturing, our grinding specialists are equipped with the latest machinery to handle complex parts requiring both processes, ensuring accuracy across internal and external dimensions.

Benefits of Precision ID and OD Grinding

Both ID and OD grinding processes offer manufacturers key advantages:

1. Improved Accuracy: Maintains extremely tight tolerances.
2. Superior Surface Finish: Reduces friction, wear, and heat generation.
3. Longer Component Life: Precision grinding ensures optimal part performance and durability.
4. Consistency at Scale: Ideal for high-volume production runs.
5. Cost Efficiency: Minimizes scrap and reduces the need for secondary operations.

Common Challenges in Grinding—and How Nexus Manufacturing Solves Them

While grinding offers unmatched precision, it requires expertise and advanced equipment to overcome potential issues. Some challenges include:

1. Thermal Damage: Excessive heat can cause micro-cracks or burns.
2. Wheel Wear: Grinding wheels must be dressed regularly for accuracy.
3. Vibration and Chatter: Can lead to poor surface finish and reduced tolerances.
4. Material Hardness: Superalloys and hardened steels demand specialised wheels and techniques.

Nexus Manufacturing addresses these challenges with:

• State-of-the-art CNC grinding equipment.
• Skilled technicians experienced in handling complex geometries.
• Continuous monitoring and quality control systems.
• Tailored grinding solutions based on material and application.

Choosing the Right Grinding Partner

Selecting the right grinding partner can significantly impact your project’s success. Here’s what sets Nexus Manufacturing apart:

1. Comprehensive Grinding Services – We offer both ID and OD grinding under one roof, saving time and logistics costs.
2. Tight Tolerances – Our team routinely delivers tolerances within ±0.0001 in.
3. Versatility – We work with a wide range of materials, from hardened steels to exotic alloys.
4. Industry Experience – Trusted by aerospace, medical, defence, and automotive clients.
5. Commitment to Quality – Our ISO-certified processes ensure repeatability and reliability.

How to Decide Between ID and OD Grinding

When deciding which grinding service to use, consider:

• Part Geometry: Does the critical feature lie inside or outside the part?
• Fit and Function: Will the component mate with another internal or external surface?
• Tolerance Requirements: Does the project require ultra-tight tolerances?
• Material Type: Is the component made of hardened or exotic materials?

Our team at Nexus Manufacturing can review your drawings, specifications, and requirements to recommend the best grinding solution for your project.

Future Trends in Precision Grinding

Advancements in grinding technology continue to shape the industry:

• CNC Automation: Increasing efficiency and repeatability.
• Smart Monitoring Systems: Detecting heat, vibration, and wheel wear in real time.
• Advanced Materials: Grinding solutions for titanium, Inconel, and ceramics.
• Eco-Friendly Processes: Coolant recycling and reduced environmental impact.

By investing in the latest technology, Nexus Manufacturing stays ahead of these trends to deliver precision and innovation to every client.

Partnering with Nexus Manufacturing

Both ID and OD grinding play critical roles in modern manufacturing, ensuring parts meet the highest standards of precision and performance. Knowing when to use each and how they complement one another helps manufacturers save time, reduce costs, and deliver quality products.

At Nexus Manufacturing, we provide end-to-end grinding solutions tailored to your industry and application. Whether you need tight bore tolerances, flawless external diameters, or both, our skilled team and advanced equipment are ready to help.

Ready to discuss your grinding project?

Contact Nexus Manufacturing today to learn how our ID and OD grinding services can bring accuracy, reliability, and efficiency to your production.
